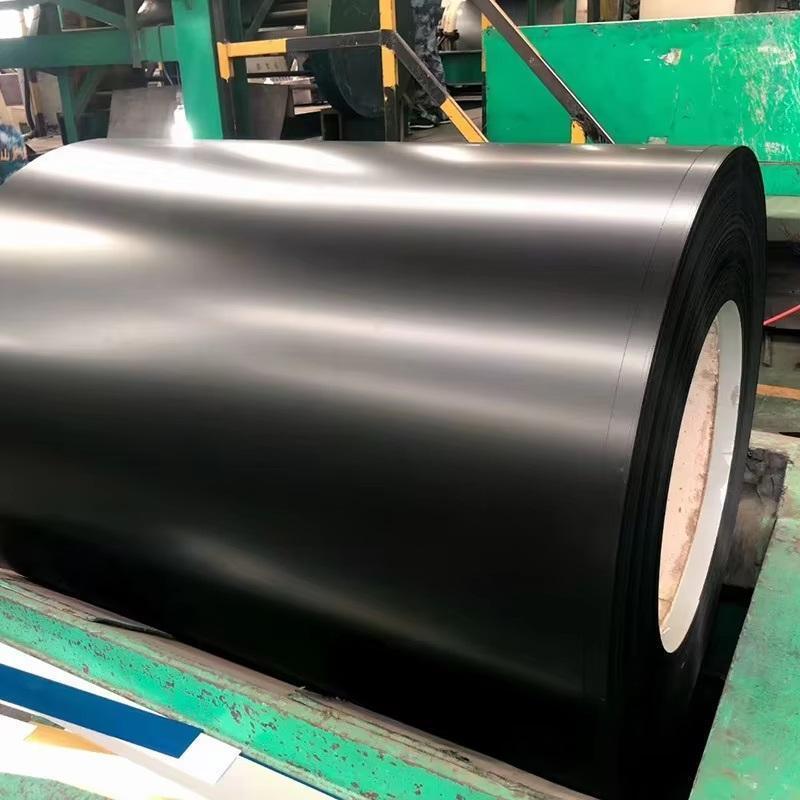

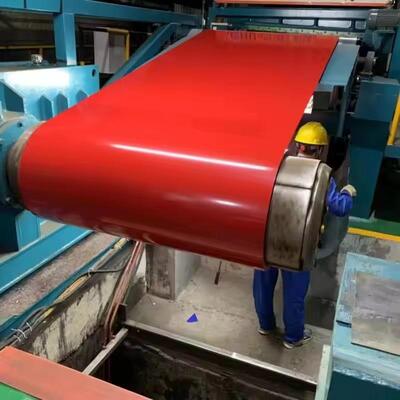

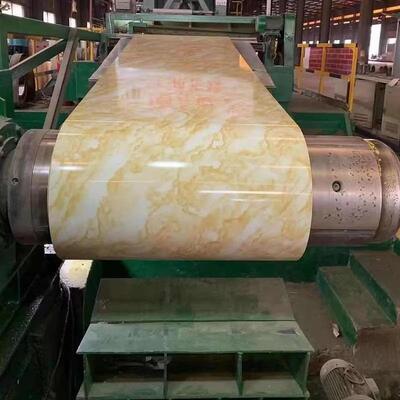

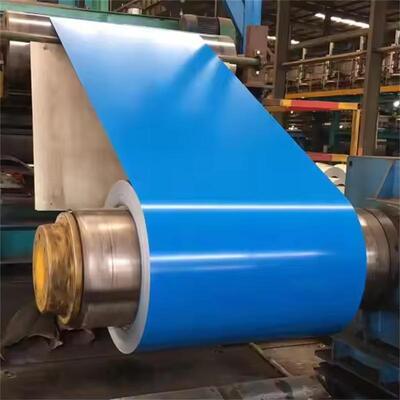

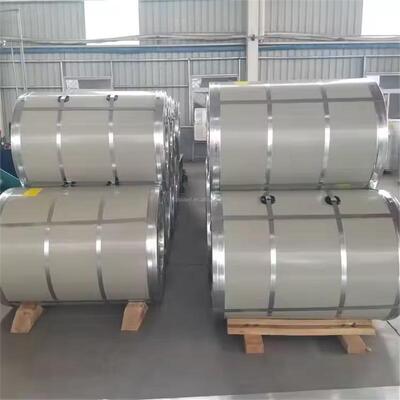

PPGI (Pre-Painted Galvanized Iron) and PPGL (Pre-Painted Galvalume Steel) coils are color-coated steel products manufactured by applying organic coatings onto galvanized or galvalume steel substrates. The coating system provides both corrosion resistance and decorative appearance, making these materials widely used in construction, appliance manufacturing, industrial fabrication, and roofing systems.

Available in thicknesses from 0.12 mm to 3.0 mm and widths from 600 mm to 1250 mm, these color-coated steel coils can be supplied in various RAL colors according to project requirements.

Manufactured in compliance with ASTM, JIS, GB/T, and EN standards, PPGI and PPGL coils offer a combination of mechanical strength, surface durability, and processing flexibility for roll forming, bending, punching, and fabrication operations.

Traditional carbon steel surfaces are exposed to environmental factors such as moisture, ultraviolet radiation, industrial pollutants, and temperature fluctuations.

Without adequate protection, steel components may experience:

• Surface corrosion

• Paint degradation

• Reduced service life

• Increased maintenance costs

• Deterioration of appearance

In roofing and wall cladding applications, long-term exposure to rainwater, sunlight, and airborne contaminants can accelerate coating failure if the substrate and coating system are not properly selected.

PPGI and PPGL steel coils combine metallic coating protection with organic paint systems.

Typical structure includes:

• Steel substrate

• Zinc or aluminum-zinc coating

• Chemical pretreatment layer

• Primer coating

• Top paint coating

• Back coat protection

Compared with bare steel sheets, color-coated steel coils provide:

• Enhanced corrosion resistance

• Consistent surface finish

• Improved weather resistance

• Decorative appearance

• Reduced maintenance requirements

• Efficient fabrication and installation

PPGL products using aluminum-zinc alloy coatings are commonly selected for projects requiring enhanced corrosion resistance in coastal and industrial environments.

PPGI and PPGL steel coils are widely used in industrial and commercial construction projects.

• Roofing panels

• Wall cladding systems

• Sandwich panels

• Ceiling systems

• Prefabricated buildings

• Ventilation ducts

• Storage containers

• Equipment enclosures

• Steel cabinets

• Refrigerators

• Washing machines

• Air conditioner casings

• Electrical cabinets

• Warehouses

• Agricultural buildings

• Logistics centers

• Industrial plants

The corrosion protection mechanism of PPGI and PPGL steel coils relies on multiple protective layers.

The zinc or aluminum-zinc coating acts as a sacrificial layer that helps protect the steel substrate from corrosion.

Pretreatment improves coating adhesion and enhances long-term coating performance.

The paint layer serves as a barrier against:

• Moisture

• UV exposure

• Atmospheric pollutants

• Chemical contaminants

This multi-layer protection system helps maintain surface integrity and appearance under various operating conditions.

Choose PPGI when:

• General building applications are required

• Moderate environmental exposure exists

• Cost efficiency is a priority

Choose PPGL when:

• Coastal environments are involved

• High humidity conditions exist

• Enhanced corrosion resistance is required

Higher zinc coating levels such as Z180 generally provide greater corrosion protection than lower coating weights under comparable environmental conditions.

PPGI uses a galvanized steel substrate with zinc coating, while PPGL uses a galvalume substrate containing aluminum-zinc alloy coating. PPGL is commonly selected for applications requiring enhanced corrosion resistance.

Standard thickness ranges from 0.12 mm to 3.0 mm, depending on project requirements and processing methods.

Yes. Standard RAL colors and customer-specified color samples can be produced according to project specifications.

Products can be supplied according to ASTM, JIS, GB/T, and EN standards depending on customer requirements.

Yes. Cutting, decoiling, bending, punching, welding, and custom packaging services are available.
