Product Description

Pure Copper Plates and Sheets are essential materials for applications requiring excellent electrical conductivity, thermal conductivity, corrosion resistance, and aesthetic appeal. Manufactured by Qingdao Gaoyu Metal Products Co., Ltd. in Shandong, China, these high-quality copper products combine superior purity (99% Cu minimum) with precise dimensional control, making them the preferred choice for industrial manufacturing, electrical applications, and decorative projects.

Our Prime Copper Sheets are available in grades T1, T2, T3 and international equivalents C11000, C10200, strictly adhering to ASTM, AISI, JIS, DIN, EN, and GB standards. With a bright surface finish and thickness range of 1mm to 3mm, these copper plates deliver reliability, workability, and visual appeal for B2B customers worldwide.

Applications

The versatility of Sylaith Pure Copper Plates makes them suitable for numerous industries:

1. Industrial Manufacturing

• Machine parts and components

• Bushings and bearings

• Gaskets and seals

• Industrial tooling

2. Electrical & Electronics

• Busbars and conductors

• Switchgear components

• Transformer parts

• Electrical terminals

• Grounding plates

3. Construction & Architecture

• Roofing and cladding

• Flashing and gutters

• Decorative panels

• Architectural accents

• Handrails and fixtures

4. Automotive & Transportation

• Radiator components

• Heat exchanger plates

• Electrical system parts

• Gaskets and washers

5. Decorative & Artistic

• Sculptures and art pieces

• Decorative wall panels

• Furniture inlays

• Signage and nameplates

• Jewelry components

6. Marine Applications

• Shipbuilding components

• Marine hardware

• Corrosion-resistant fittings

7. Heat Exchange

• Heat sink plates

• Cooling system components

• HVAC parts

8. Bending & Forming Applications

• Custom formed parts

• Bent components for machinery

• Stress-relieved parts

Working Principle: How Pure Copper Plates Are Manufactured

Pure Copper Plates and Sheets are produced through a precise manufacturing process:

Step 1: Raw Material Selection

High-purity copper cathodes or ingots (99% min purity) are selected based on the required grade (T1, T2, T3, C11000, etc.). Chemical composition is strictly controlled to meet international standards.

Step 2: Melting & Casting

The copper is melted in furnaces at controlled temperatures, then cast into slabs or billets. For oxygen-free grades (TU1, TU2, C10200), melting occurs in a controlled atmosphere to prevent oxidation.

Step 3: Hot Rolling

The cast slabs are heated and passed through rolling mills to reduce thickness. Hot rolling improves grain structure and mechanical properties while achieving initial dimensional requirements.

Step 4: Cold Rolling (for precise thickness)

For thinner gauges and better surface finish, the copper undergoes cold rolling to achieve the final thickness (1mm-3mm) with tight tolerances.

Step 5: Annealing (if required)

Depending on the desired hardness and formability, the copper may be annealed to achieve the required mechanical properties (elongation ≥35%, tensile strength 220-400 MPa).

Step 6: Surface Treatment

The plates are cleaned and polished to achieve a bright surface finish suitable for both industrial and decorative applications.

Step 7: Cutting & Sizing

Sheets are cut to required dimensions:

• Width: 20mm - 2500mm

• Length: 10mm - 12000mm

Step 8: Quality Inspection

Every plate undergoes rigorous testing:

• Chemical composition analysis (Cu ≥99%)

• Mechanical property testing (tensile, elongation)

• Dimensional inspection

• Surface quality check

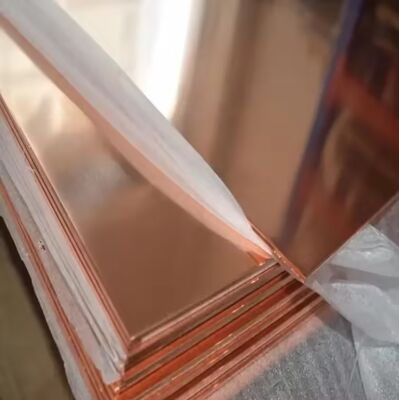

Step 9: Packaging

Finished products are carefully packaged for export:

• Protective wrapping to prevent surface damage

• Moisture protection for sea transport

  • Protective wrapping to prevent surface scratches

  • Moisture-proof materials for sea transport

  • Secure bundling with steel strips

  • Edge protectors to prevent damage

  • Suitable for container or bulk vessel shipping

    Secure bundling for safe handling

    FAQ (Frequently Asked Questions)

    Q1: What is the difference between T1, T2, and T3 copper?

    A:

    • T1 Copper: Highest purity (99.97% min), oxygen-free, best conductivity and ductility. Used for critical electrical applications, vacuum devices, and high-performance electronics.

    • T2 Copper: High purity (99.90% min), excellent balance of properties and cost. Most common grade for general industrial and electrical applications (equivalent to C11000).

    • T3 Copper: Standard purity (99.70% min), good for general fabrication where extreme purity isn't required. More economical for decorative and non-critical applications.

    Choose T1 for maximum performance, T2 for standard industrial use, T3 for cost-sensitive decorative projects.

    Q2: What is the copper content of these plates?

    A: Our copper plates have a minimum copper content of 99%. Depending on the grade selected:

    • T1: 99.97% min

    • T2/C11000: 99.90% min

    • T3: 99.70% min

    • Oxygen-free grades (TU1, TU2, C10200): 99.95% min

    Q3: What thickness range do you offer?

    A: Our standard thickness range is 1mm to 3mm, but we can supply:

    • Thin sheets: 0.1mm - 0.9mm

    • Standard plates: 1mm - 3mm

    • Heavy plates: 4mm - 20mm

    Custom thicknesses are available upon request.

    Q4: What are the width and length options?

    A: We offer extensive customization:

    • Width: 20mm to 2500mm

    • Length: 10mm to 12000mm

    We can cut to your exact specifications to minimize waste and processing time.

    Q5: What is the surface finish like?

    A: Our copper plates feature a bright surface finish that is:

    • Clean and polished

    • Free from oxidation and scaling

    • Suitable for both industrial use and decorative applications

    • Ready for immediate fabrication or installation

    Q6: What processing services do you provide?

    A: We offer comprehensive in-house processing:

    • Bending: For custom shapes and angles

    • Welding: Copper welding for assemblies

    • Cutting: Precision cutting to size

    • Punching: Holes and cutouts

    • Decoiling: From coil to flat sheet

    Q7: What standards do your products comply with?

    A: We manufacture to multiple international standards:

    • ASTM (American)

    • AISI (American)

    • JIS (Japanese)

    • DIN (German)

    • EN (European)

    • GB (Chinese)

    Q8: What is your minimum order quantity (MOQ)?

    A: Our MOQ is 1 Ton, making it easy for customers to place trial orders or purchase small quantities for specific projects. Larger volume discounts are available for bulk orders.

    Q9: Can you provide samples before bulk order?

    A: Yes! With MOQ starting at just 1 Ton, you can easily place a sample order to test our quality before committing to larger volumes. Contact us to discuss your sample requirements.

    Q10: Is copper suitable for welding?

    A: Yes, copper has excellent weldability, especially grades like:

    • C10200/C12000/C12200: Deoxidized grades specifically designed for welding

    • T2/C11000: Good weldability for most applications

    • T1/TU1: Oxygen-free grades for critical welded assemblies

    We provide welding processing services and can advise on the best grade for your welding application.

    Q11: What are the typical applications for 1-3mm copper plates?

    A: This thickness range is versatile and used for:

    • Electrical busbars and components

    • Decorative panels and architectural features

    • Machine parts and washers

    • Heat exchanger plates

    • Gaskets and seals

    • Art and sculpture

    • Roofing and flashing

    • Automotive components

    Q12: What payment terms do you accept?

    A: We accept:

    • T/T (30% Advance+70%Balance)

    Terms are negotiable based on order value and customer relationship.

    Q13: What are your price terms?

    A: We offer flexible price terms:

    • FOB (Free On Board)

    • CIF (Cost, Insurance, Freight)

    • CFR (Cost and Freight)

    • EX-WORK (Ex Works)

    Q14: How do you package copper plates for export?

    A: We use standard export packaging:

    Q15: Can you customize the size?

    A: Absolutely! We offer full customization:

    • Thickness: Custom from 0.1mm to 20mm

    • Width: 20mm to 2500mm

    • Length: 10mm to 12000mm

    • Shape: Square, rectangular, round discs available

    Simply provide your specifications for a custom quote.

    Q16: What is the difference between copper plate and brass plate?

    A:

    • Copper Plate (our product): Pure copper or high-copper alloy, reddish-orange color, excellent electrical/thermal conductivity, soft and ductile.

    • Brass Plate: Copper-zinc alloy, yellow-gold color, harder than pure copper, good corrosion resistance, often used for decorative applications.

    We supply both pure copper (T1, T2, T3) and brass (H96, H85, C26000) grades.
